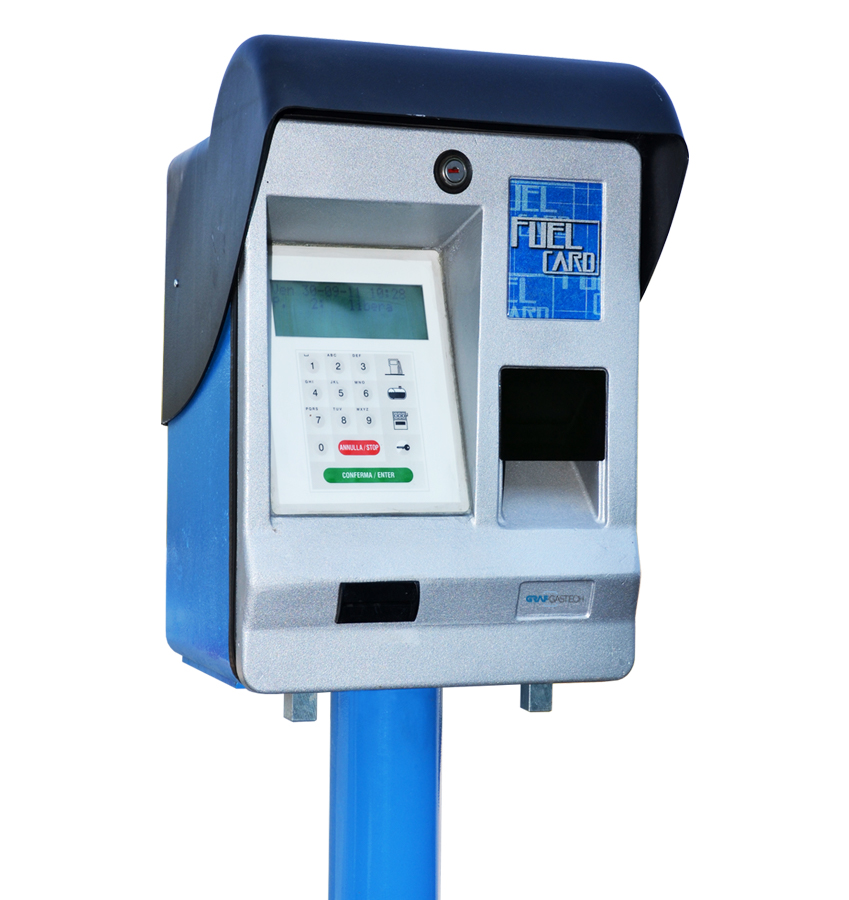

Fuel Card is the complete system for the access control and for the management of refuelings of vehicles fleets in private areas, 24 hours a day, 7 days a week.

The system is able to identify the vehicle, the driver and authorize them to supply, keeping track of all the data relating to the transaction. Each vehicle is provided with a chip card identification as well as each driver. An operator intending to supply a vehicle, introduces the piece of the vehicle and below that of the driver if both are authorized by the operator, Fuel Card enables the delivery and stores data.

MAIN TECHNICAL FEATURES

Power Supply 230 V ac ± 14% single-phase, 50 – 60Hz
Operating temperature -20°C ÷ +40°C
Dimensions 33 x 33 cm – H 160 cm – 12,5 kg
Degree of protection IP33
Digital output Clean, normally open contacts, max 0.5 A, cosφ = 1, max 30 V dc

Max conductor section: 1.5 mm²

Input – Two fast digital input 10mA @ 24 V dc, 800Hz

– Four generic digital input 10 mA @ 24 V dc

– Two analogue input 4-20mA

Thermal printer option Approximately 1.7 million receipts, with 21 lines per receipt
Remote connection option – Device for remote cable connection

– Device for remote connection via ethernet network

– Modem unit installed inside FuelCard

Are you interested in this product?
Request the dedicated brochure
