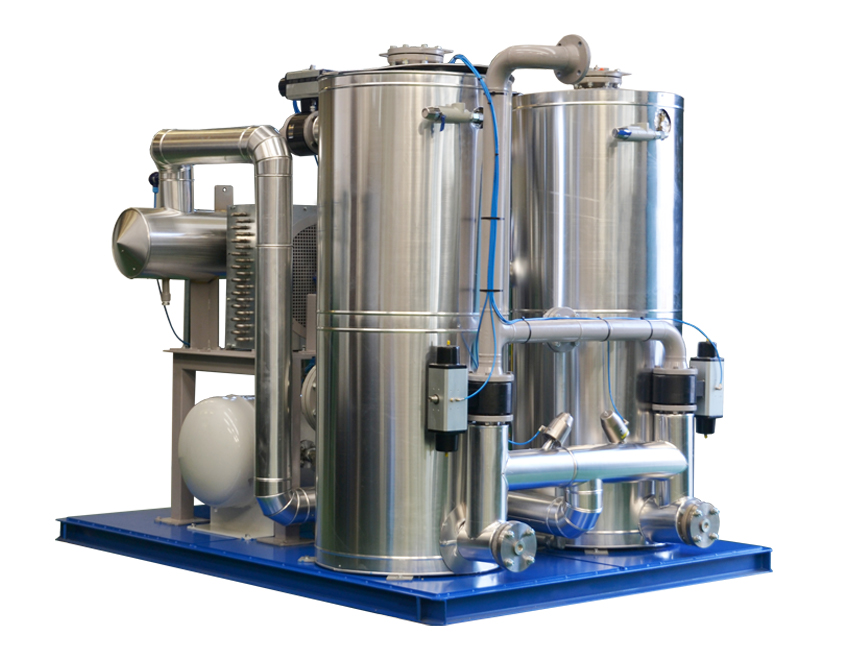

GRAF regenerative type dryer series GRGDR is composed of two columns filled with molecular sieve and is completed with an automatic closed loop circuit regenerative system with no gas emission.
It is totally automatic and it is able to switch its work status without any intervention. The absorption phase is fulfilled with high-quality material that helps the gas to reach a dew point up to –80°C.

MAIN TECHNICAL FEATURES
Inlet pressure | 2÷6 bar / 6÷12 bar / 12÷20 bar |
Capacity | 1500/2500 sm³/h |
Number of columns | 2 columns (1 on work phase and 1 on regeneration phase) |
Quantity of absorbing material | 150 kg for each column |
Grade of gas filtration | Inlet filter 40 μ / Outlet filter 3 μ |
Regeneration type | Closed loop circuit completely automatic |
Voltage | 400 V 50 Hz |
Consumed power | 18 ÷ 28 kW depending on model |
Length of regeneration phase | 7 ÷ 9 h |
Working temperature | -10 ÷ 50°C |
