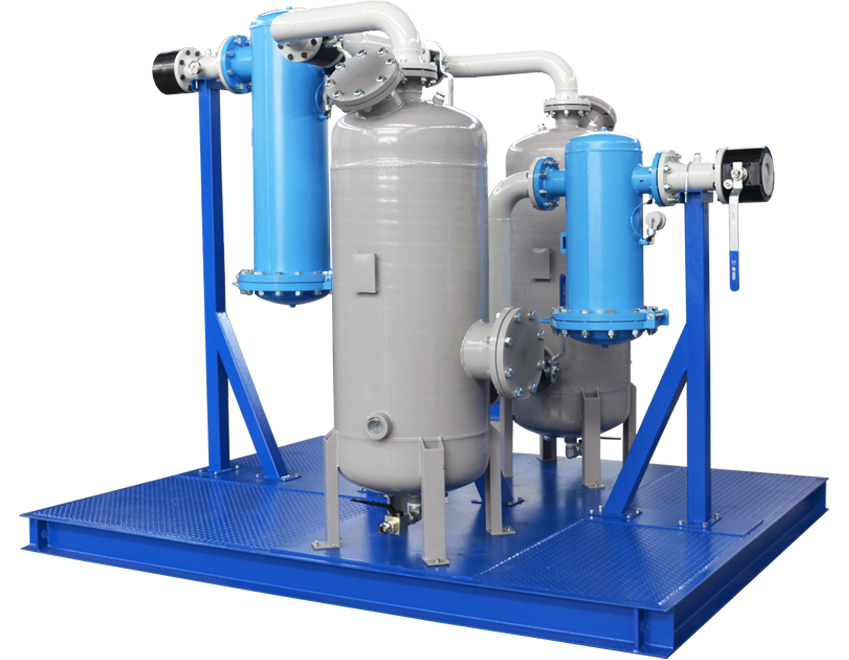

Non regenerative dryer series GRGDD is composed of two separate columns, filled with non regenerative material. When a column is in absorbing phase, the other one is in stand-by: in this way, it is possible to replace the absorbing material with total safety.

Work status change is made manually by the operator. Material used for absorption is of high-quality and helps the gas to reach a dew point up to – 80 °C.

dryer-graf-2

MAIN TECHNICAL FEATURES

Working pressure 2÷6 bar / 6÷12 bar / 12÷20 bar
Capacity 1500/2500 sm³/h
Number of columns 1 or 2 columns
Quantity of absorbing material 120 kg for each column
Filtration grade Inlet filter 40 μ / Outlet filter 3 μ
Working temperature -10 ÷ 50°C
