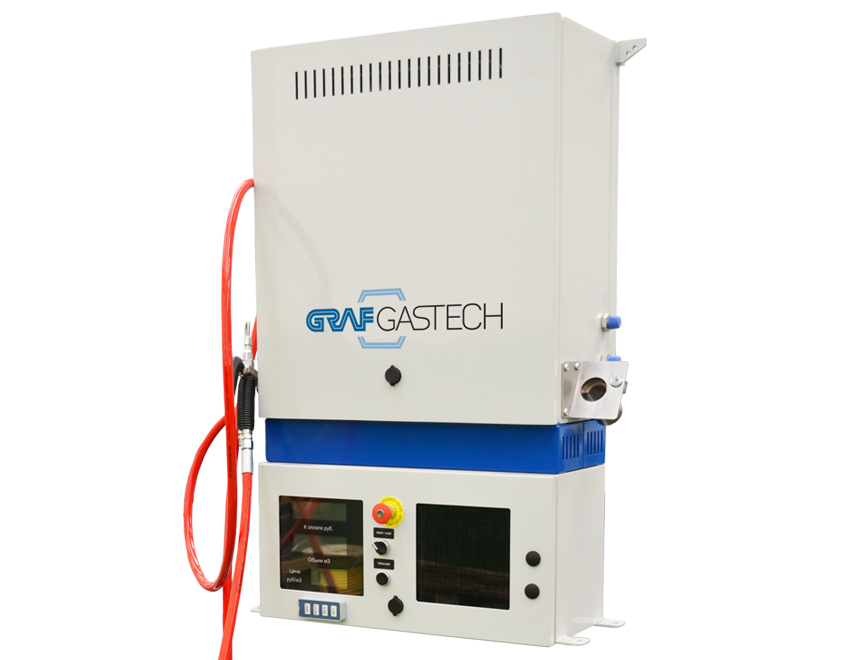

Dispenser series DNG model T is GRAF Gastech solution for gas distribution from trailer. It can be installed on trailer board for filling vehicles where the gas supply line lacks.

Thanks to its small overall dimensions and specific design, dispenser DNG mod. T can be easily carried and installed on trailer board. It may include up to two filling posts totally independent and it can be customized.

dispenser_DNG-T

MAIN TECHNICAL FEATURES

Number of filling posts 1-2
Type of gas CNG with density of 0,65…0,87 Kg/m³
Working temperature -40 ÷ 55°C
Working pressure 220 bar
Max. working pressure 250 bar
Accuracy ≤ ± 1%
Voltage 230 Vac +/- 15% 50-60 Hz
Flow light vehicles version Up to 25 Kg/min
Flow heavy vehicles version Up to 60 Kg/min
Structure Painted steel or AISI 304
Are you interested in this product?
Request the dedicated brochure
